4K Ultra HD, Better in Details
4K Ultra HD (8MP, 3840 x 2160) delivers almost 4 times clarity than 1080p. This superior kit can show the finest key details in vividness, even when you digitally zoom in so that every ambiguity in video footage you met before is cleared up.

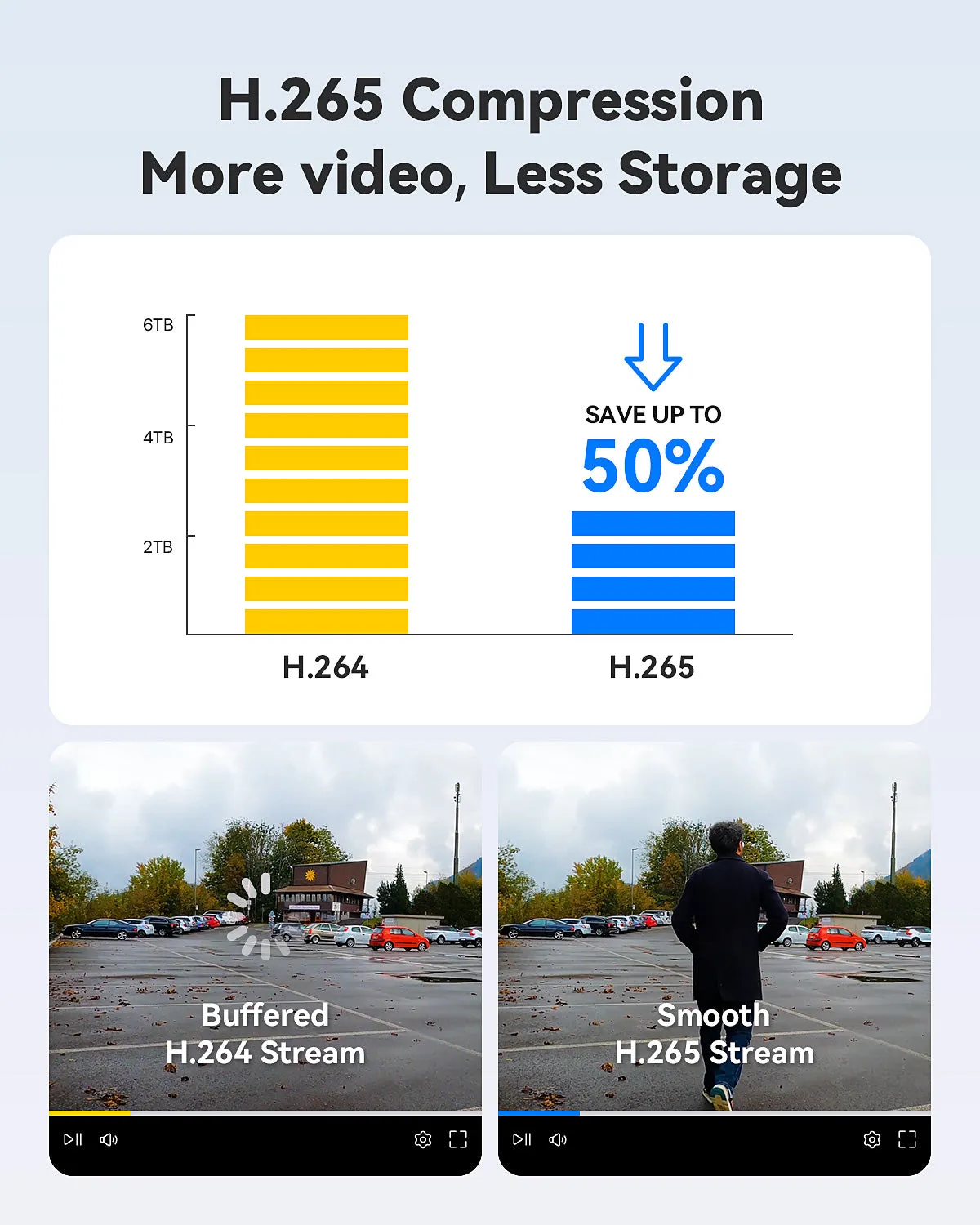

H.265 Encoding Technology
H.265 Recording Compression Record 40-50% more video than H.264 on the same hard drive. H.265 can improve network performance for remote viewing as well.H.265 technology compresses your video without sacrificing any of the UltraHD video quality.4KUltra HD 24/7 Full Color images

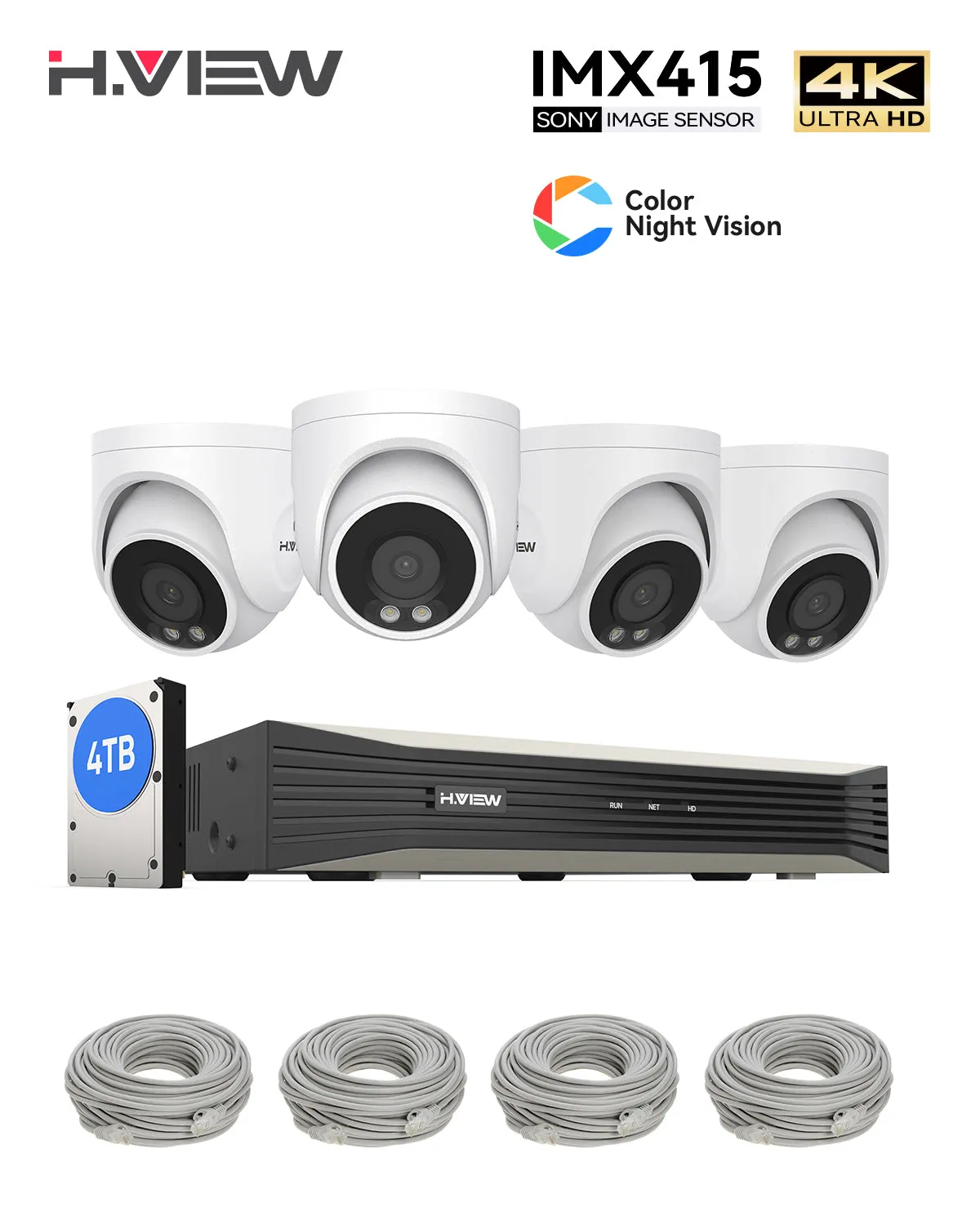

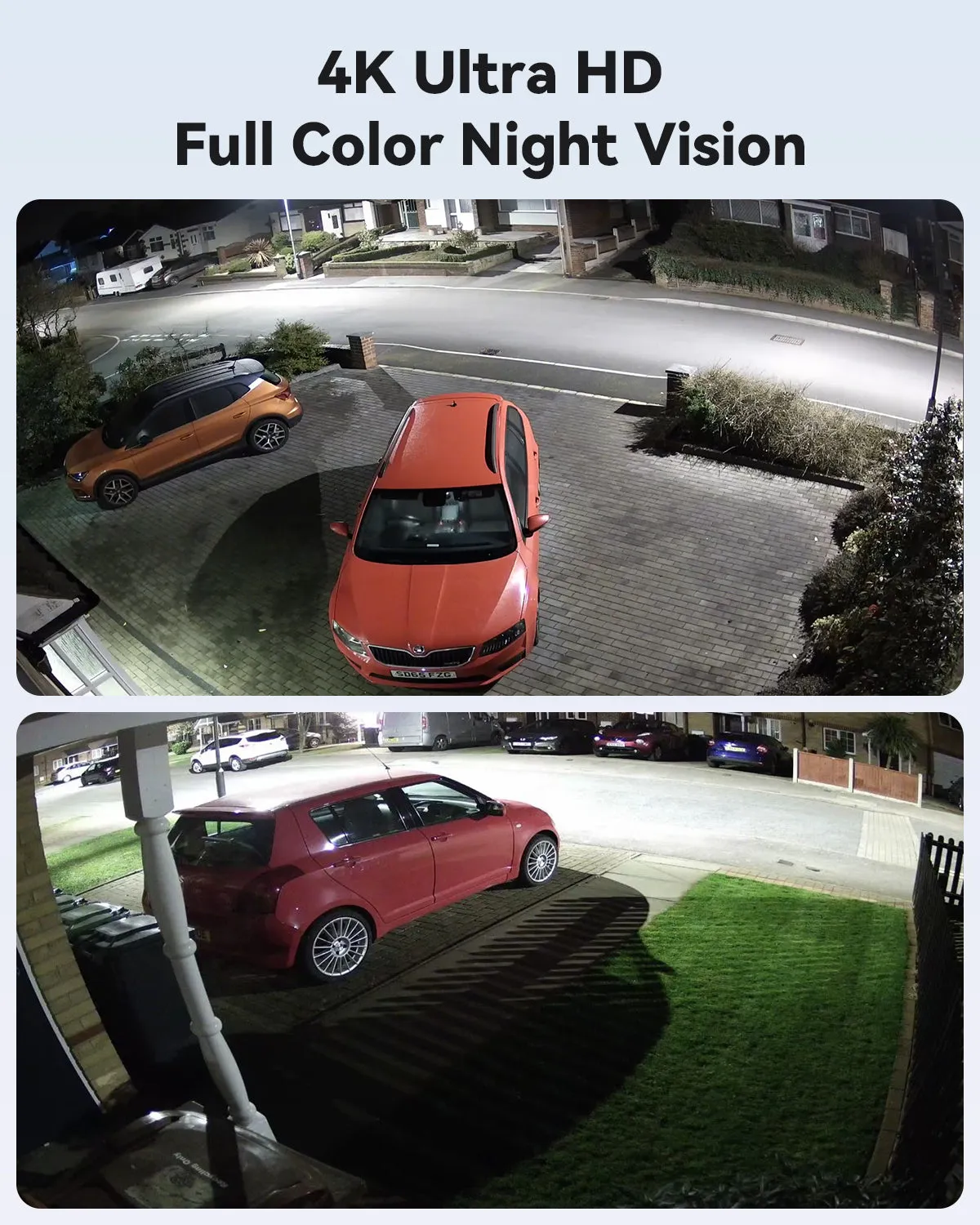

Contains especially powerful SONY IMX415 image sensor which produces full-color video In regular nighttimeconditions, see every details including human face, vehicles during night.

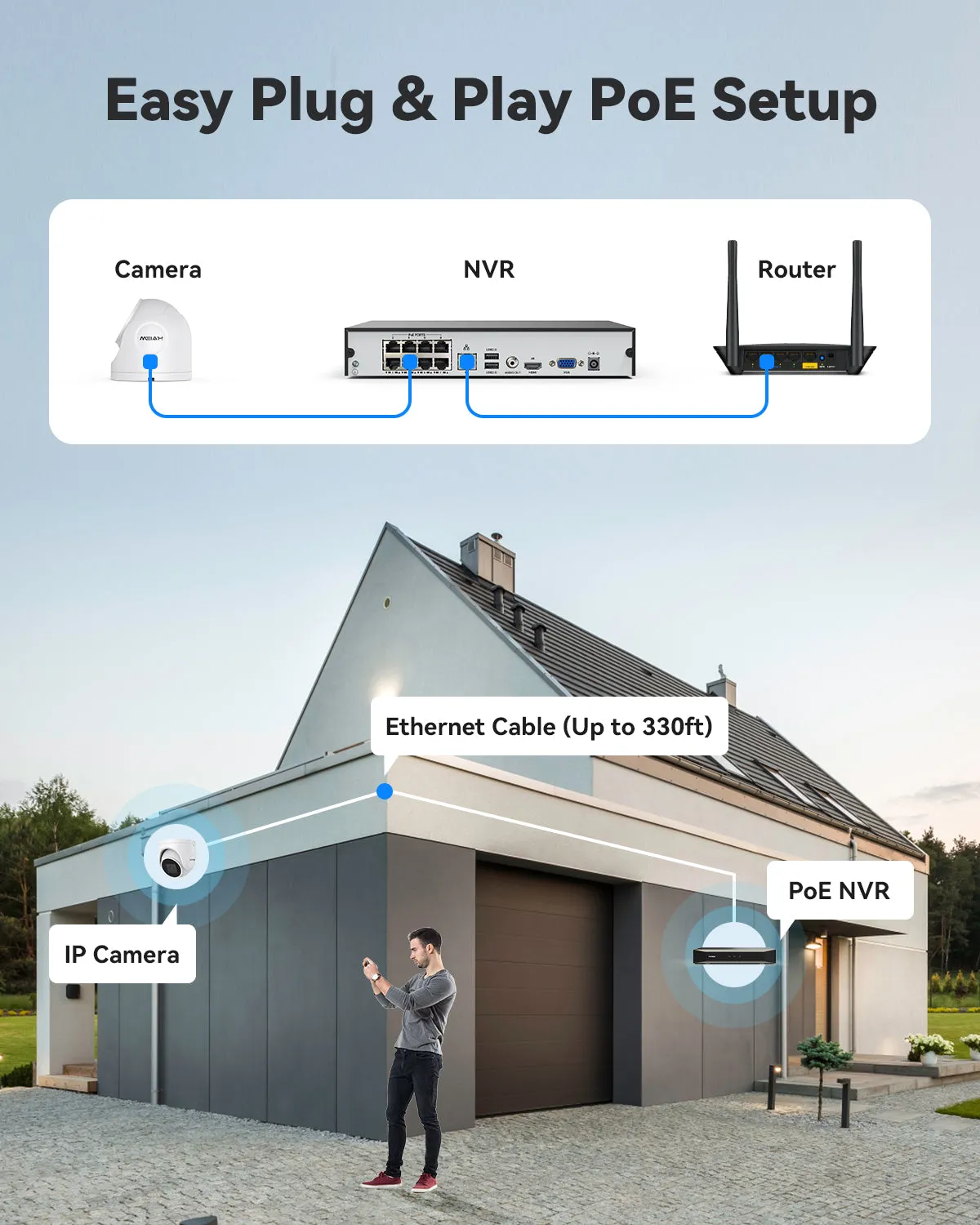

PoE Easy Setup, Even for a Beginner
A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring the wiring process cant be simpler for DIY enthusiasts and beginners.
24/7 Monitoring and Recording, NVR Never Sleeps
This 8CH 4K PoE NVR security camera system supports simultaneous live feed and 24/7 recording for all cameras. the security IP camera can not only record just motion clips, but also every single minute of what happened. When something abnormal is detected, youll get notified instantly. You will never miss anything.
Remote Viewing, Anytime, from Anywhere
Remotely view the IP Camera via free H.VIEW App on your mobile device, free H.VIEW Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.)
Smart Motion Alerts
This 4K 8MP security System can detect motion and notify you instantly through push notifications, emails alerts . You can personalize all kinds of alerts to fit your needs.
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
Listen to what's happening around
Built-in microphone let you hear the sound around the camera,records what people say, make it authentic with sound video recording.
Ready for Anywhere, Indoor and Outdoor
Dont worry to put these 4K Ultra HD PoE cameras anywhere, inside or outside. With IP66 waterproof rating, these cameras will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat. This is a truly year-round security camera.
4K (8MP) PoE IP Camera Parameters

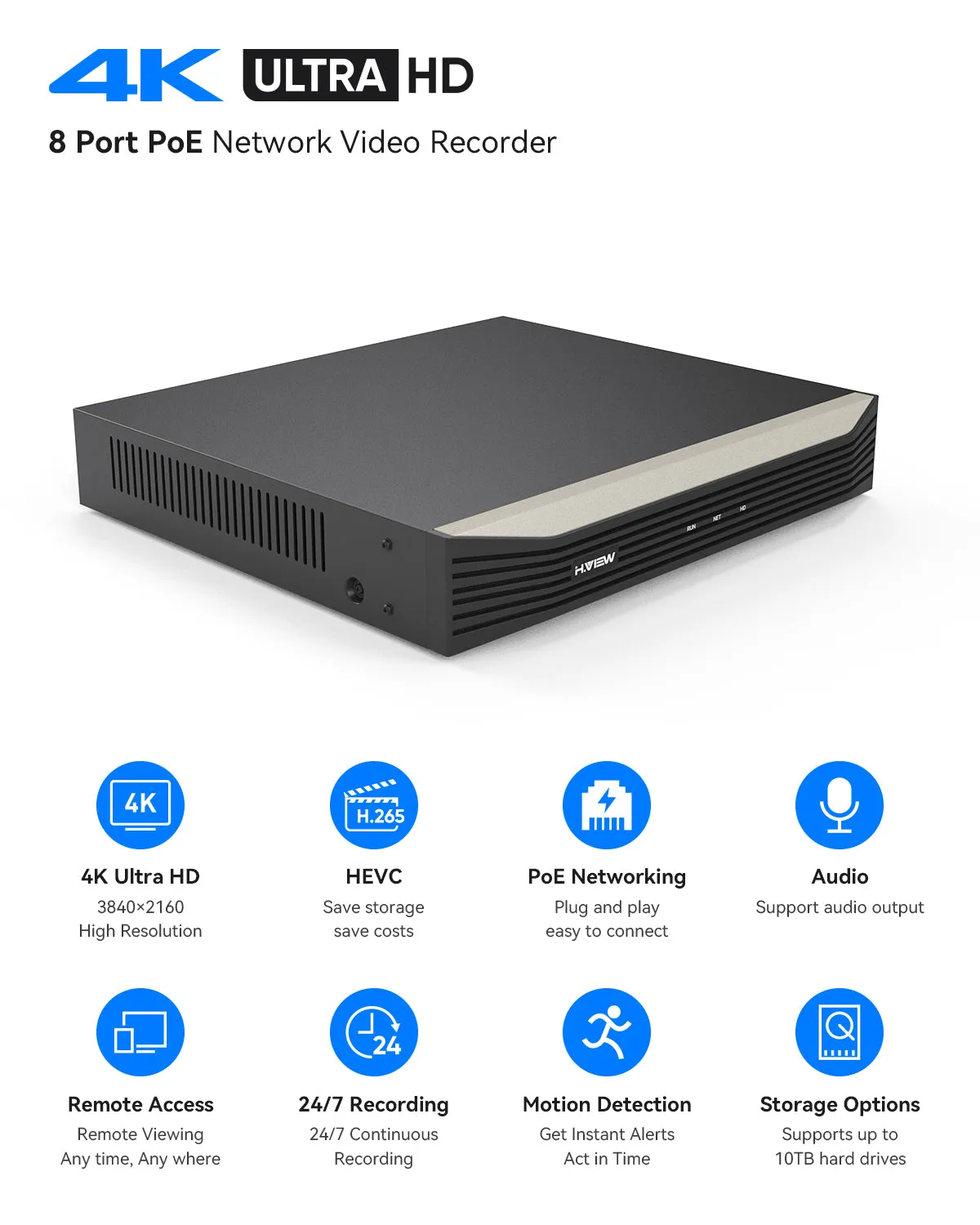

4K 8CH POE NVR Specification
What's in the box?

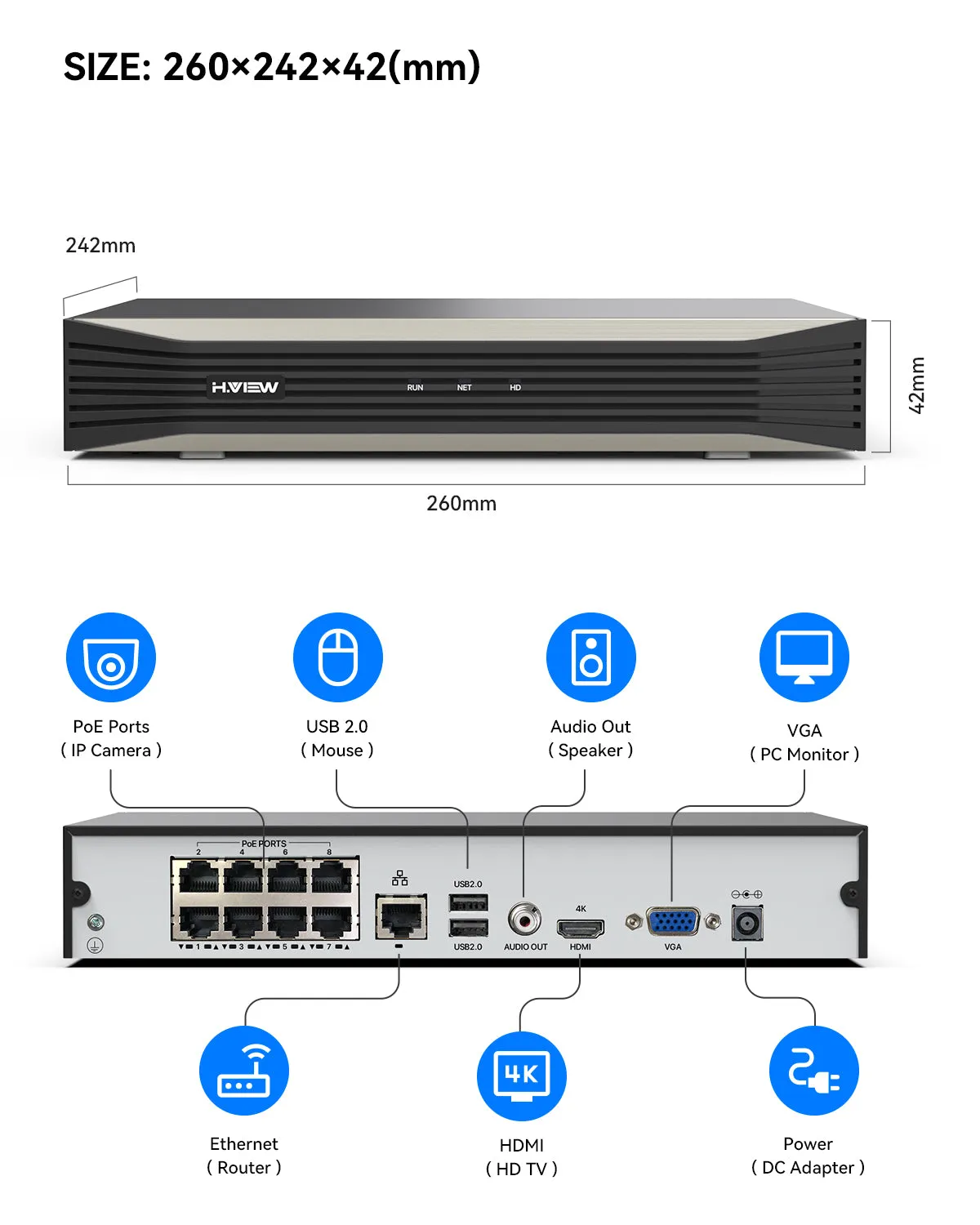

NVR Specifications
Model NVR3108-8P Video/Audio Input IP Video Input 8-ch Network Incoming Bandwidth 50Mbps Outgoing Bandwidth 40Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA Output HDMI:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzRecording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Synchronous Playback 8-ch Corridor Mode Screen 3/4/5/7/9 Decoding Decoding format Ultra 265/H.265/H.264 Liveview/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1x8MP@30,1 x 6MP@30,1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 Hard Disk SATA 1 SATA interface Capacity up to 10TB for each disk External Interface Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel: 2 x USB2.0 Supported Standard IEEE 802.3at, IEEE 802.3af External Interface Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface Max Power Max 30W for single port
Max 75W in totalSupported Standard IEEE 802.3at, IEEE 802.3af General Power Supply 48V DC
Power Consumption: 9 W (without HDD)Working Environment -10C ~ 55C ( 14F ~ 131F), Humidity 90% RH (non-condensing) Dimensions (WDH) 260mm 240mm 46mm (10.2"9.4"1.8") Weight (without HDD) 1.1kg (2.43 lb) Camera Specifications
Model HV-800E6A5 Image Sensor 1/2.7, 8.0 megapixel, progressive scan, CMOS
Smart Features Motion Detection, Intrusion Detection Human Body Detection Lens [email protected] 112 of horizontal coverage; Shutter Auto/Manual, 1 ~ 1/50000s Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON) Defog Digital Defog WDR 120dB LEDs Number 2 LED Distance Up to 30m (98ft) Video
Video Compression
H.265, H.264, MJPEG Camera Streams Main Stream: up to 8MP (38402160): Max. 20 fps,
Sub Stream: up to 720p (1280x70): Max. 20 fps;
Mobile Data-Sensitive Stream: up to D1 (720576): Max. 20 fpsMax. Image Resolution 38402160;8 Megapixel Frame Rate 8MP (38402160)/15 fps; 6MP(3042 2048 )/20fps; 5MP (20481520)/20 fps;4MP(2592*1520)/20fps; 1080P (1920*1080)/20 fps Video Bit Rate 256 Kbps~16 Mbps OSD Support Wide Dynamic Range Digital WDR Waterproof Rated IP66 Rated Privacy Mask Up to 4 areas ROI Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/manual Image 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p Digital noise reduction 2D/3D DNR Smart Illumination Support Flip Normal/Vertical/Horizontal/180/90Clockwise/90Anti-clockwise Dewarping N\A HLC Support WDR Support BLC Support HDR Support AUDIO Audio Compression ACC;G.711U;G.711A;G726 Suppression Supported Audio bit rate 8Kbps/16Kbps Storage Edge Storage Micro SD, up to 256GB Network Storage ANR, NAS(NFS),FTP Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP Compatible Integration ONVIF (Profile S, Profile T),HKvisionDahuaNETIP(XM),API cms SmartClient ;EZPlayerIPC Manager,Blue Iris, iSpy, Synology Nas, Qnap NasSecurity SpyVLCTinyCamMilestoneZyXEL NASAXXONNUUOiVMS-4200Onvifer Web Browser IE, Chrome , Firefox, Edge ,Safari ,Opera General
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface Power Supply 12 V DC25%, PoE (IEEE802.3 af/at) Supported Standard IEEE 802.3at, IEEE 802.3af surge protection 2KV Working Environment -10C ~ 55C ( 14F ~ 131F), Humidity 90% RH (non-condensing) Dimensions (WDH) 93 x 93mm Weight 0.65kg 1.
