Product description:

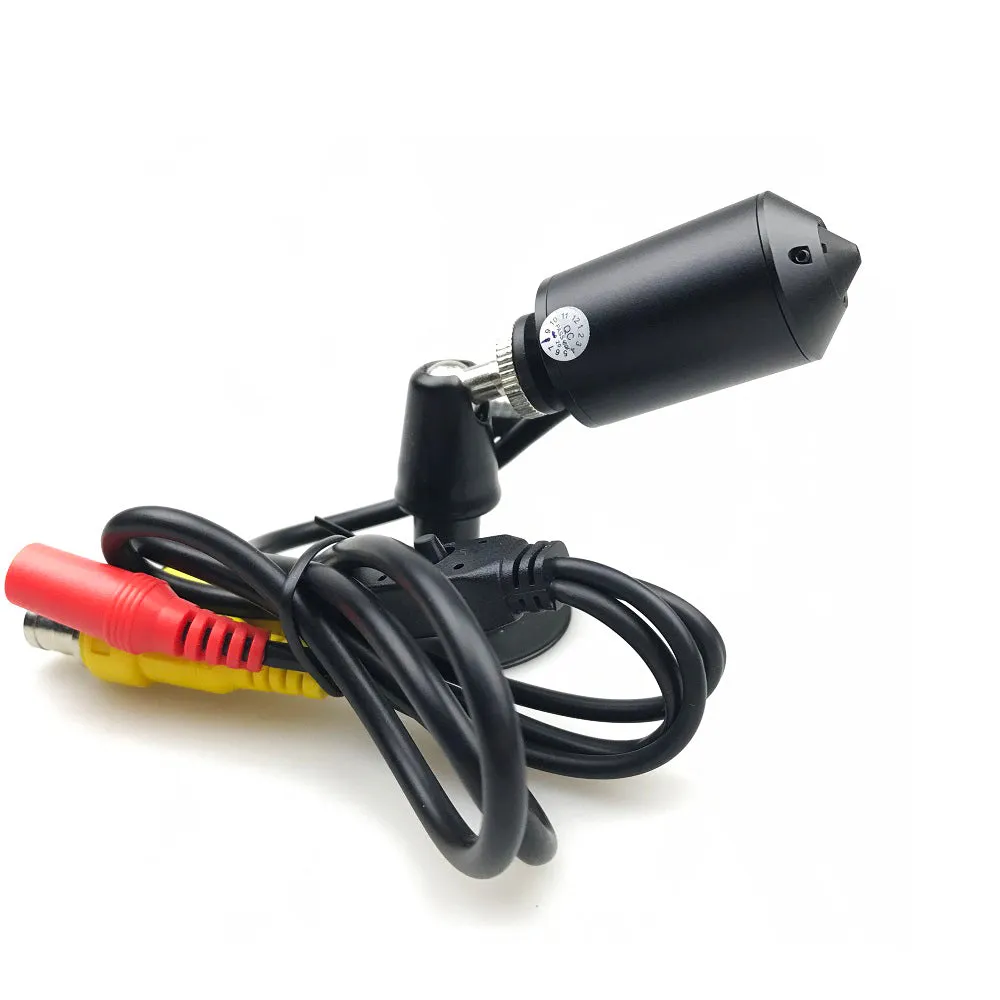

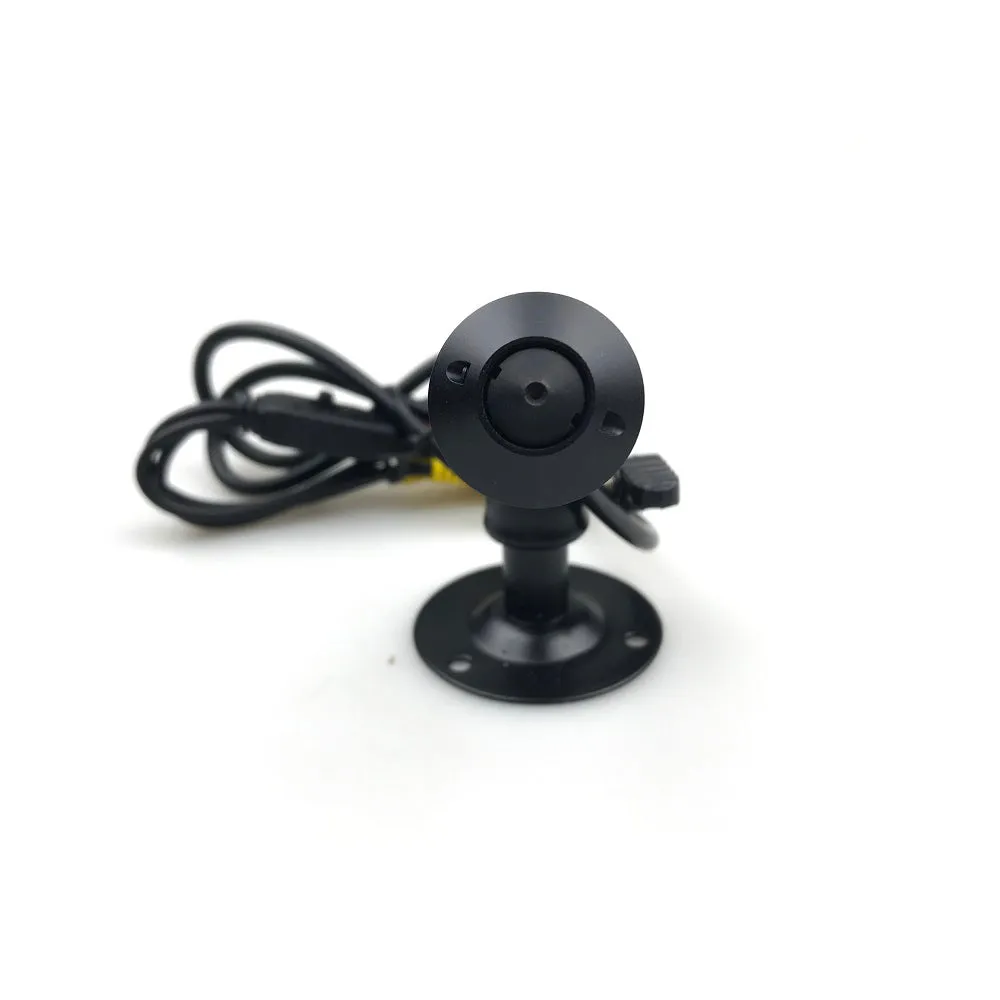

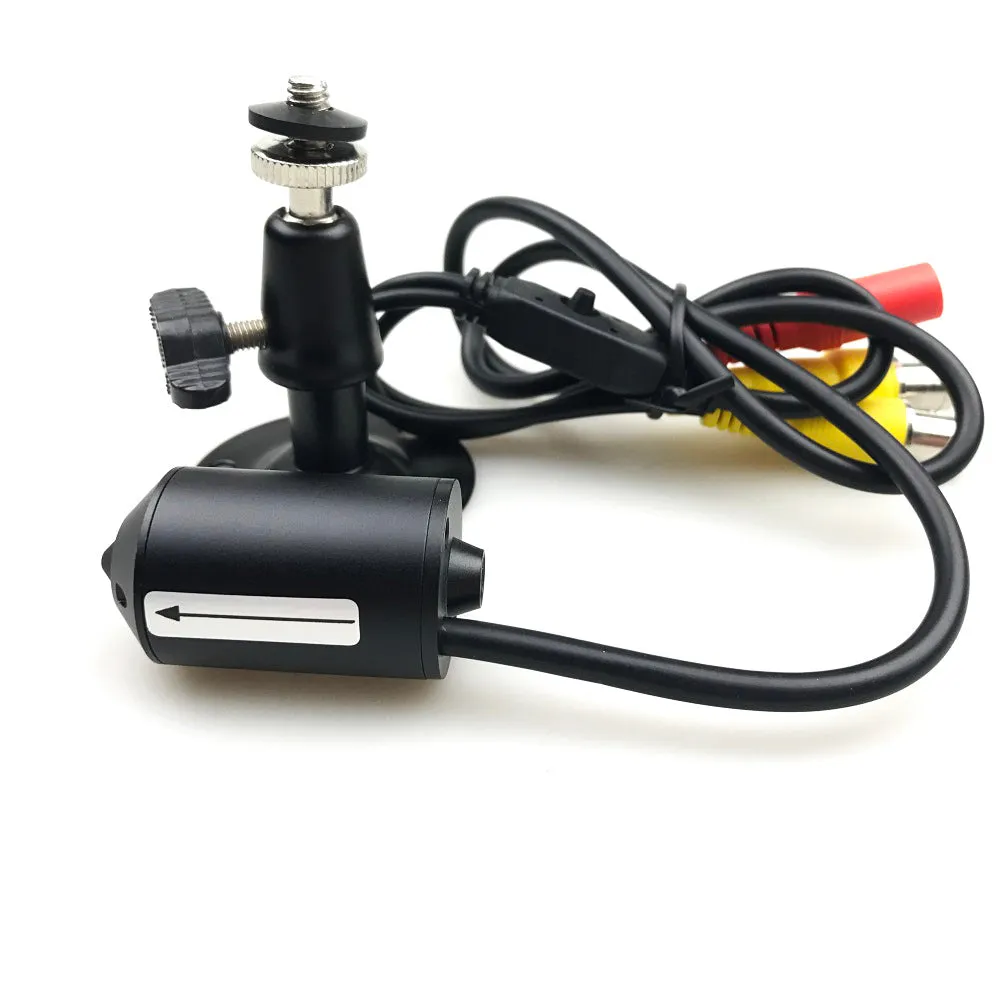

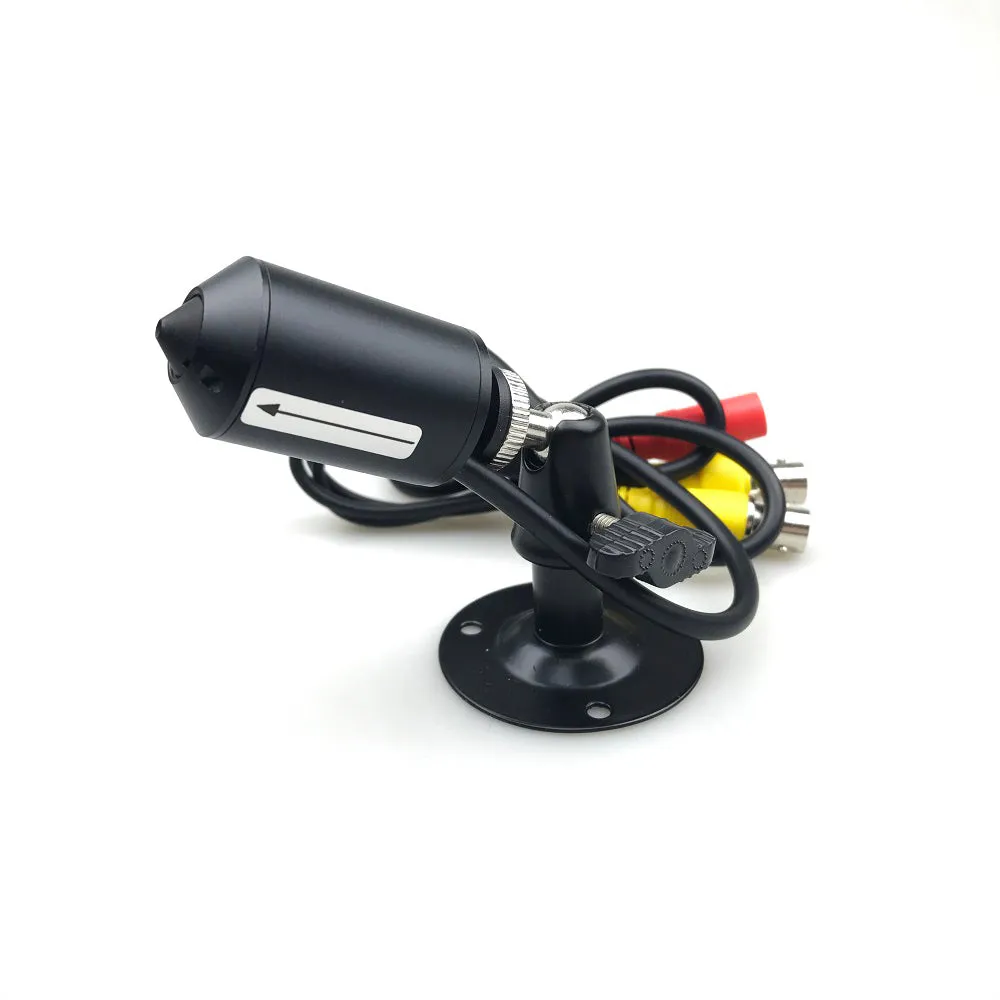

MODEL: OSYBZ-BT30 is 1080P HD-SDI Miniature Camera, using 2 mega pixel panasonic progressive scan CMOS chip which have 1080P clear picture, good real-time,lower illumination, pinhole SDI Camera 3.7MM Lens 90 degree with 3D noise reduction and WDR functions, can use in bank, army, prison security industrial and so on.
- Characteristics description
1080P high-definition real-time output;HD - SDI video signal output, support SMPTE292M standard
WDR, 3DNR, BLC functions; Defog function; 96X digital zoom; Privacy mask, motion detection
- Specitications
Image Sensor | 1/3Progressive-Scan CMOS |
Total Pixel | 2010(H)x1108(V) |
Actual pixels | 1920(H)x1080(V) |
Lens | 3.7mm Mega pixel lens |
Resolution | 1100TV Line |
Min.Illumination | Color 0.2luxBlack 0.01lux |
Shutter | Auto 1/25~1/3000 |
Frame cumulative | AutoMax x4 |
SNR | 50dB |
BLC | WDR, BLC,(D-WDR) |
DNR | 3D |
Digital amplification | x96 |
Privacy covered | 32 Area |
Motion detecting | OK |
OSD | OK |
Vedio Output | HD-SDI/CVBS |
Power | DV12V |
Consumed Power | Max 2W |
Operating temperature | -10~ 50 |
Operating Humidity | Max 90%RH |

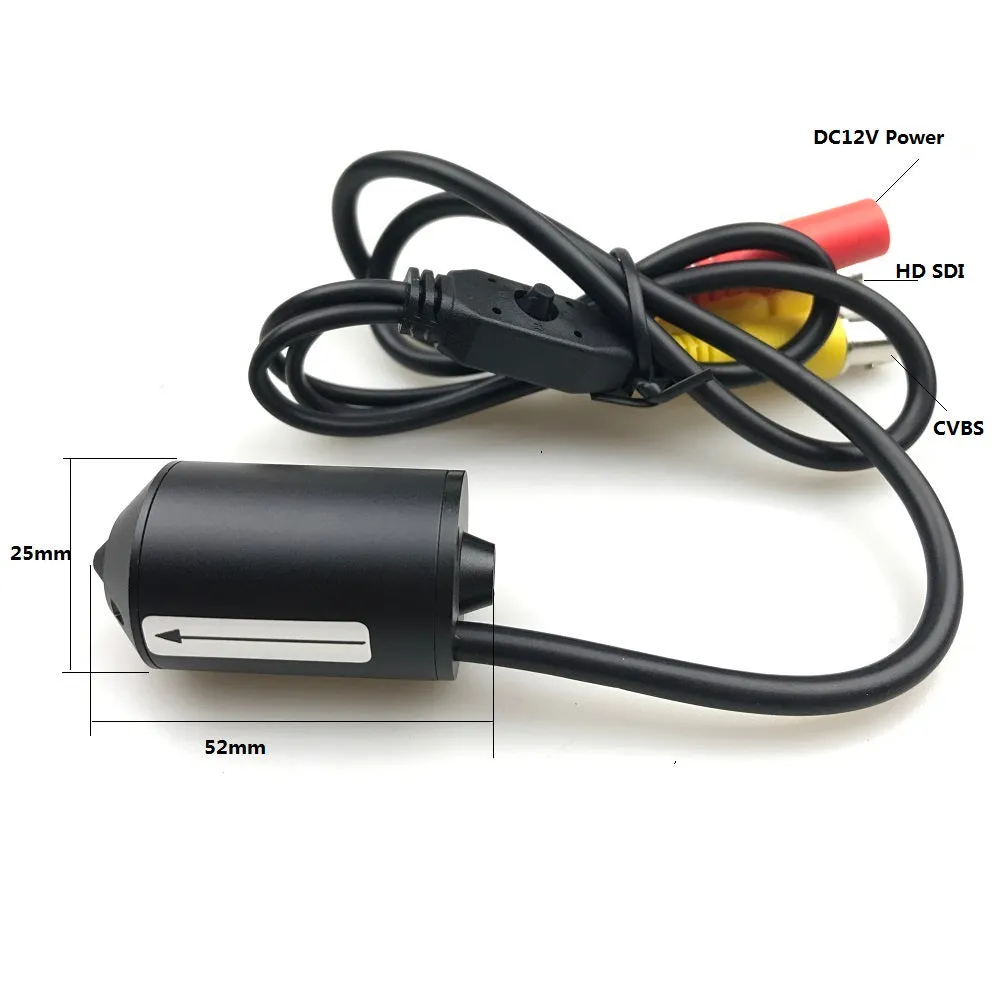

Size | F25*52mm |
Weight | 220 g |
Advantage:High bandwidth, low latency, strong anti-interference capability, and support for long-distance transmission.
Application fields: such as live broadcasting, multi-camera shooting, film production, etc., real-time monitoring, on-site switching, integration with professional equipment, high-resolution shooting, etc.
SDI cameras, with their high-quality video and low-latency features, are widely applied in broadcasting and television, film and television production, security surveillance, medical field, education, meetings, industrial inspection, transportation, sports, and scientific research.
